Japan SMC Compact Rodless Cylinder MGJ10-20

2025-10-02 Automation Parts
10
Table of Contents

The SMCMGJ10-20 is a compact, double-acting rodless cylinder with a guide rod design manufactured by SMC Corporation of Japan. It features a compact design, high rigidity, and low friction, along with a built-in sliding guide for enhanced torque resistance. The guide rod is shortened by 22mm, saving installation space and making it suitable for precision equipment.

Product Introduction

BrandSMC
ModelMGJ10-20
TypeCompact Rodless Cylinder, Rodless Cylinder, Cylinder

Product Features

  1. Compact Design: The guide rod is shortened by 22mm, saving installation space and suitable for precision equipment.

  2. High-Precision Guide: The three-axis, three-rod structure provides strong resistance to off-center loads.

  3. Optional Magnetic Switch: Supports contactless magnetic switches.

Applications

  • Electronic Equipment: Chip Mounting Machines, Chip Handling

  • Medical Instruments: Reagent Needle Positioning

  • Lightweight Assembly: Micro Screw Locking, Micro Parts Grasping

  • Precision Inspection Equipment: CCD Camera Focusing Platform

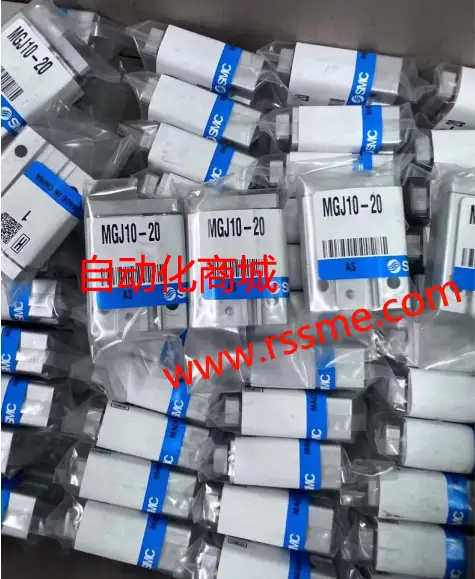

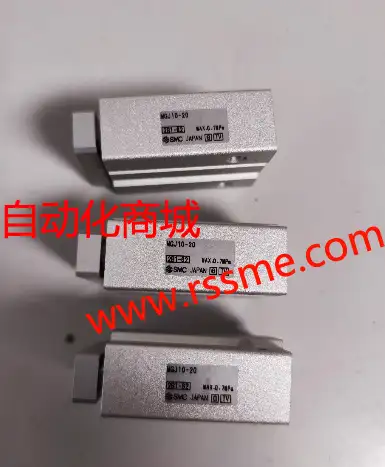

Sample Images

Japan SMC Compact Rodless Cylinder MGJ10-20Japan SMC Compact Rodless Cylinder MGJ10-20
