Japan SMC original authentic cylinder CDM2B20-50Z

The CDM2B20-50Z, manufactured by SMC Corporation of Japan, is a classic and widely used medium-sized double-acting cylinder. Using compressed air to drive the piston's extension and retraction, it provides stable output force in both directions of motion, making it a highly trusted standard actuator in automation equipment.

Product Introduction

Product Features

• Compact Structure: Compared to traditional cylinders, the axial dimension is approximately 24% shorter, making it ideal for installation in space-constrained applications such as fixtures and small robotic arms.

• High-Rigidity Design: The piston rod is equipped with a precision guide structure, increasing lateral load resistance by 40% and ensuring more stable and reliable movement.

• Position Detection: Supports installation of a magnetic switch (requires optional magnetic ring model) for real-time piston position feedback.

• Excellent Corrosion Protection: The piston rod is hard-chrome plated (4μm thick) and the cylinder barrel is anodized aluminum alloy for rust resistance and durability.

• Excellent Cushioning Performance: Equipped with an adjustable hydraulic cushioning device (denoted by the "Z" suffix), it effectively reduces end-of-line shock and is suitable for medium- and high-speed applications.

Application Scenarios

Due to its versatility, high rigidity, and excellent cushioning performance, the CDM2B20-50Z is widely used in the following automation fields:

• Packaging Machinery: Performs operations such as material packaging and quantitative filling;

• Machine Tool Operation: Used for tool changes, workpiece clamping, and automatic feeding;

• Assembly Systems: Performs operations requiring smooth movement and precise positioning;

• Automated Production Lines: Performs functions such as pushing, lifting, flipping, and positioning.

Sample Images

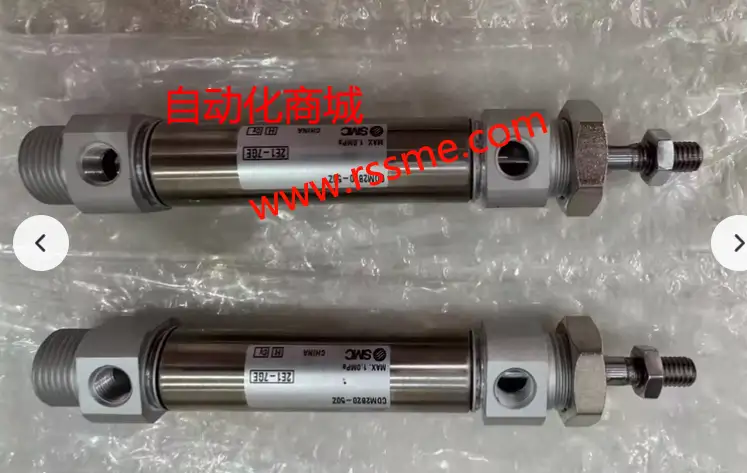

Japanese SMC cylinder CDM2B20-50Z
