A brief introduction to the SP-D01N2photoelectric switch for automated production lines is recorded here for your reference.
Text
The photoelectric switch SP-D01N2 is a commonly used photoelectric sensor in the field of industrialautomation. Its core function is to detect objects by blocking or reflecting the light beam.
Detection principle
The infrared light emission and reception principle is adopted. When the object blocks or reflects the light beam, the switch signal is triggered. It is suitable for metal/non-metal object detection.
Technical parameters
| Parameter | Feature description |
|---|---|
| Detection type | Diffuse reflection photoelectric switch (general detection without calibration object) |
| Detection distance | 10cm~100cm (adjustable) |
| Output type | NPN normally open (NO) |
| Supply voltage | DC 10-30V (wide voltage compatible) |
| Response time | ≤1ms (high-speed response, suitable for assembly line) |
| Protection level | IP67 (dustproof and waterproof, suitable for industrial environment) |
| Typical application | Packaging machinery counting, conveyor belt object detection, automated assembly line |
Model comparison
| Model | Brand | Advantages |
|---|---|---|
| KEYENCEPQ-05N | Detection distance 1.2m, accuracy ±0.1mm | |
| OMRON EE-SX671 | OMRON | Strong anti-light interference, IP67 |
| FOTEKPR18-5DN | FOTEK | High cost performance, compatible with SP-D01N2 function |
Application scenarios
Pressing machine: Linked with SMCcylinder to detect workpiece in place
Safety protection: Automatic door sensing, punching machine safety area monitoring
Intelligent control: Liquid level detection, packaging machine fixed length cutting
Industrial automation: Conveyor belt material detection, robot arm movement counting
Logistics sorting line: Installation height 20cm, detection of package passage
Sample Image

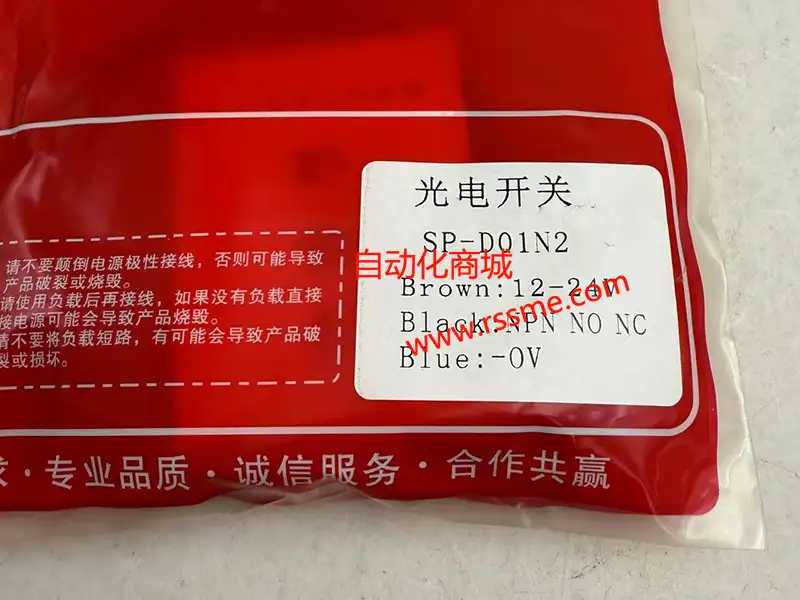

SP-D01N2 photoelectric switch for automated production line

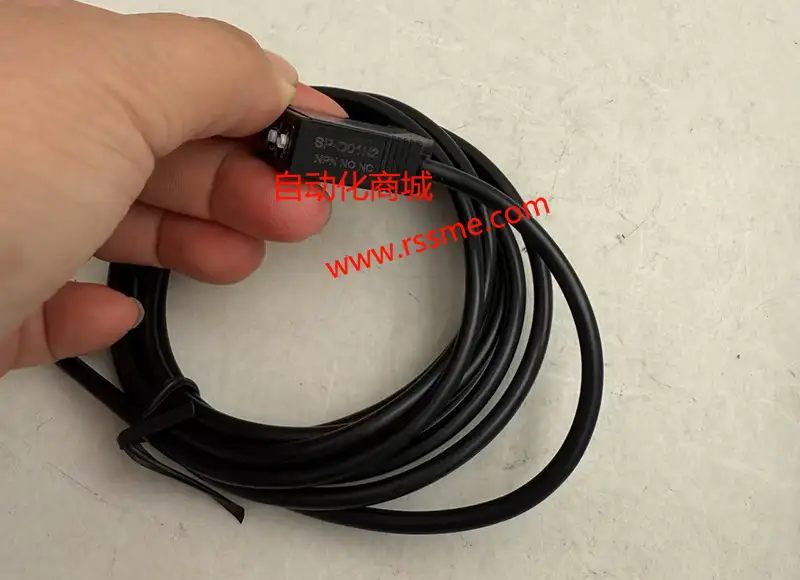

SP-D01N2 photoelectric switch for automated production line
