Product Overview

DGSL-12-100-Y3A is the preferred solution for long-stroke precision positioning in the Festo micro slide series, especially suitable for light-load automation scenarios in the semiconductor and photovoltaic industries. Its core advantages are 0.01 mm repeatability, hydraulic buffering and impact resistance, and clean room compatibility.

Technical parameters

Category	Parameter value	Description
Stroke	100 mm	Maximum slide travel distance
End position adjustment range	Front 68 mm / Rear 25.5 mm	End stroke fine adjustment capability
Piston diameter	16 mm	Pneumatic output force core parameters
Working pressure	1~8 bar (0.1~0.8 MPa)	Compatible with conventional pneumatic systems
Maximum speed	0.8 m/s	≥6 bar air pressure required to reach peak speed
Repeat accuracy	±0.01 mm	High positioning stability
Buffer system	Hydraulic buffer at both ends (progressive)	Buffer length 10 mm, shock absorption 2 Nm
Guide type	Ball bearing cage guide	Anti-eccentric load design, no mechanical gap
Working mode	Double acting	Bidirectional pneumatic drive
Output force (6 bar)	Forward stroke 121 N / Return stroke 104 N	Theoretical thrust value
Material composition	Housing/cover: forged aluminum alloy Seal: HNBR Piston rod: high alloy steel	Corrosion-resistant, high temperature resistant (0~60°C)
Weight	1265 g	Total weight including accessories

Application scenarios

‌Semiconductor and electronics manufacturing‌

Used for micron-level positioning in wafer processing and chip packaging to meet the precision requirements of lithography or detection processes‌1
Integrate into LCD/OLED panel production lines to complete optical detection or fine pattern adjustment‌1

‌Precision detection and biotechnology‌

As a positioning component for microscope platforms or microfluidic chips, ensure the accuracy of sample detection‌1
Achieve high repeatability motion control in automated inspection systems ‌1

‌Industrial Automation Integration‌

As a drive unit for the end effector of a robot arm, or as a linear motion module for a multi-axis gantry system ‌12
Suitable for scenarios that require rapid response, such as logistics sorting and 3C electronic assembly ‌3

‌Scientific Research and Advanced Manufacturing‌

Participate in experiments such as laser micromachining and nanostructure debugging, and support complex motion trajectory programming ‌

DGSL-12 Series Differentiation

Parameters	DGSL-12-40-Y3A	DGSL-12-80-Y3A	DGSL-12-100-Y3A
Stroke	40 mm	80 mm	100 mm
Maximum Thrust	104 N (6 bar)	104 N (6 bar)	98 N (6 bar)
Total length	165 mm	205 mm	225 mm
Torque resistance	0.12 Nm	0.14 Nm	0.10 Nm
Application scenarios	Precision fine-tuning	Medium-stroke handling	Long-stroke positioning

Product display

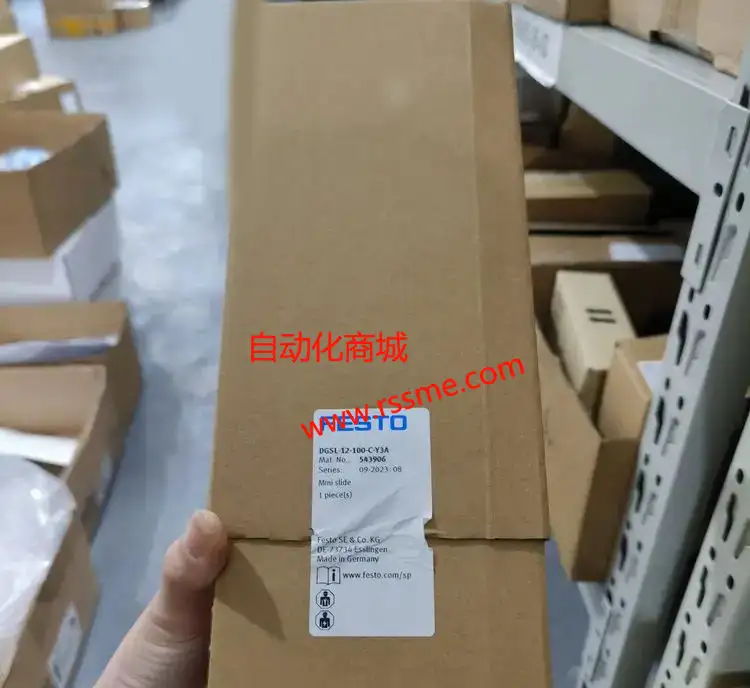

Festo small slide DGSL-12-100-Y3A
